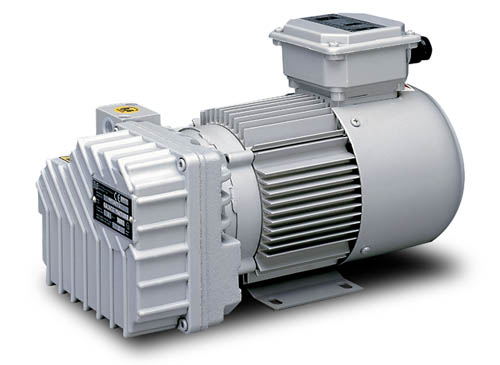

LB.6CC OIL LUBRICATED PUMP LB.6CC 24VDC

LB.6CC OIL LUBRICATED PUMP LB.6CC 24VDC

Lubricated vacuum pumps are used when the intake flow may contain moisture, or when a better final pressure is required.
These pumps may run continuously within certain pressure ranges, or connected to containers to be emptied, whose volume is sized appropriately for the pump flow rate.
Long-term use at atmospheric pressure is not recommended.
When the amount of vapour intake is considerable, we recommend using the WR versions.
The main areas of use include: vacuum packaging, thermoforming machines, glassor marble-working machines, medical equipment, food-grade pastas or clay extruders.

Compact size combined with low final pressure (Abs.) attainable are the main features of this series.
An effective damping and recovery system integral in the tank guarantees the absence of any oil vapours at the outlet.
A sealing device prevents oil from being sucked back should the pump stop under vacuum.
The intake can also be oriented by the user, thanks to a special fitting.
This series is suitable for evacuation of small closed vessels.

Standard equipment includes:

  • 24VDC motor (duty chart S1) compliant with EMC directive (2004/108/CE)
  • Exhaust mist eliminator
  • Oil check valve
  • Pack of BV32 oil
